COMPACTION EQUIPMENT RENTALS
Compaction Equipment
Taxes & rental agreement are not shown in this price estimate. Rental rate price match guaranteed. All inventory prices subject to change.

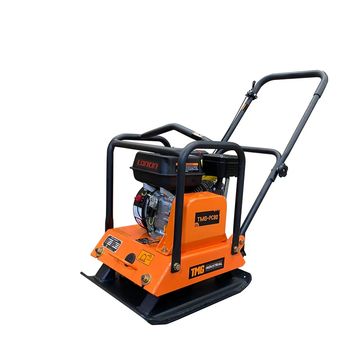

Plate Tamper 200lb
$40/day $160/week
Specifications
- Frequency: 4200 VPM
- Compaction depth: 12”
- Compaction force: 3400 lb
- Work capacity: 6534 sq-ft/hr
- Travel speed: 72’/min, varies with hardness and depth of material
- Plate size: 22” x 17”
- Operation weight: 195 lb
Engine Specifications:
- 6.5 HP LONCIN G200F engine
- Air-cooled 4 stroke OHV gasoline engine
- Max power: 6.5 HP @ 3600 RPM
- Max torque: 9.15 lb/ft @ 3600 RPM
- Displacement: 196 cc
- Air cleaner: Dual element
- Fuel tank capacity: 3.8 US qt
- Engine oil type: 10W-30
- Emissions compliance: EPA
Plate Tamper 300lb
65/day $260/week
Wacker BPU-2540A Reversible Plate Compactor Specifications
Operating weight309 lbs | 140 kg
Working width15.8 in
Machine height25.5 in
Working height of handle (adjustable)31.5 - 45.0 in
Base plate thickness0.4 in
Max. centrifugal force5.625 lbs
Vibration frequency90 HzMax. forward and reverse travel68.9 ft/min
Gradeabilityup to 30%
Compacted area (depending on soil)5.425ft2/h
Drive engineAir-cooled, 4-cycle, single cylinder
Max. power output (@3600 rpm)5.5 hp
Rated power output (@2800 rpm)2.0 hp
Run Time4.
Plate Tamper 500lb
$125/day $500/week
Wacker BPU3750A Specifications
Operating weight529 lbs | 240 kg
Baseplate19.7 x 27.7 in
Working Height (Adjustable)36.8 - 51.3 in
Working Width19.7 in
Centrifugal Force8317.9 lb
Vibration Frequency90 Hz
Travel Speed82 ft/min
Productivity8073 ft2/hr
EngineHonda GX270
Displacement16.5 in3
Fuel Capacity5.6 qt
Run Time~4.5 hours
